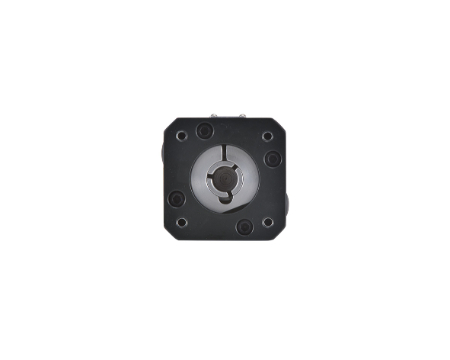

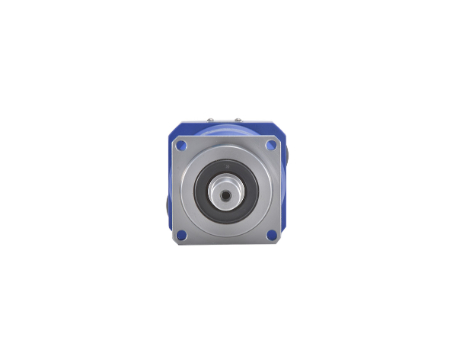

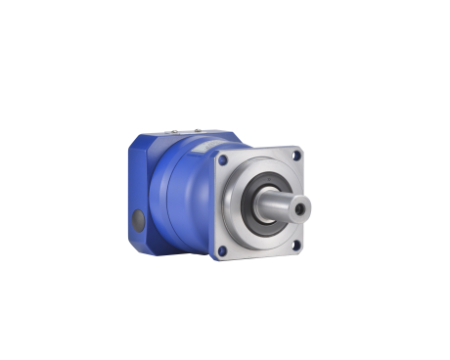

精度高/低齿背隙
- 制作严谨,稳定性高。
- 单段齿背隙<1~<5弧分。
- 双段齿背隙<3~<7弧分。
效率高
- 单段97%,双段94%。
体积小
- 行星式运转平顺,结构紧凑,体积小,输出扭力大,在有限空间限制下,极有优势。
易安装
- 联接板与轴套采用模组化设计,适合各式马达组装。
长寿命、免保养
- 采用优质人工合成润滑油,流动性佳,齿箱内各零件间充分得到润滑及保护,可免换油。
- 采用高品质、耐热、耐磨之油封,密封性佳。

AG 技术资料 (单段) 减速比 3/4/5/6/7/8/10
规格 | 减速比 | AG042 | AG060 | AG090 | AG115 | AG142 | AG160 | AG180 | AG220 | |
---|---|---|---|---|---|---|---|---|---|---|
最大加速扭矩 (1) T2B | Nm | 3 | - | 45 | 113 | 222 | 440 | 770 | 1165 | 1960 |
4 | 18 | 55 | 130 | 300 | 560 | 880 | 1450 | 2400 | ||
5 | 18 | 55 | 130 | 278 | 560 | 880 | 1450 | 2400 | ||
6 | 15 | 45 | 115 | 267 | 480 | 800 | 1220 | 2020 | ||
7 | 13 | 40 | 110 | 240 | 425 | 760 | 1085 | 1800 | ||
8 | 10 | 38 | 103 | 222 | 410 | 700 | 1045 | 1740 | ||
10 | 7 | 35 | 90 | 210 | 350 | 520 | 1000 | 1635 | ||
紧急停止扭矩(2) T2Not | Nm | 3 | - | 112.5 | 282.5 | 555 | 1100 | 1925 | 2912.5 | 4900 |
4 | 45 | 137.5 | 325 | 750 | 1400 | 2200 | 3625 | 6000 | ||
5 | 45 | 137.5 | 325 | 695 | 1400 | 2200 | 3625 | 6000 | ||
6 | 37.5 | 112.5 | 287.5 | 667.5 | 1200 | 2000 | 3050 | 5050 | ||
7 | 32.5 | 100 | 275 | 600 | 1062.5 | 1900 | 2712.5 | 4500 | ||
8 | 25 | 95 | 257.5 | 555 | 1025 | 1750 | 2612.5 | 4350 | ||
10 | 17.5 | 87.5 | 225 | 525 | 875 | 1300 | 2500 | 4087.5 | ||
额定输入转速 n1N | rpm | 3 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 |
4 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
5 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
6 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
7 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
8 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
10 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
最大输入转速 n1Max | rpm | 3 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 |
4 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
5 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
6 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
7 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
8 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
10 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
径向负荷力(3) Frmax | N | 3 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 |
4 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
5 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
6 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
7 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
8 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
10 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
轴向负荷力3) Famax | N | 3 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 |
4 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
5 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
6 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
7 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
8 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
10 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
超精密背隙 | arcmin | 3 | - | - | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
4 | - | - | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ||
5 | - | - | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ||
6 | - | - | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ||
7 | - | - | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ||
8 | - | - | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ||
10 | - | - | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ||
精密背隙 | arcmin | 3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
4 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
5 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
6 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
7 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
8 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
10 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
标准背隙 | arcmin | 3 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
4 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
6 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
7 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
8 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
10 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
扭转刚性 | Nm/arcmin | 3 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 |
4 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
5 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
6 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
7 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
8 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
10 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
满载时使用效率 | % | 3 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 |
4 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ||
5 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ||
6 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ||
7 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ||
8 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ||
10 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ||
使用寿命 LH2 | h | 3 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 |
4 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
5 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
6 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
7 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
8 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
10 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
重量 | kg | 3 | 0.7 | 2.0 | 4.3 | 8.5 | 15.5 | 22.5 | 32 | 55 |
4 | 0.7 | 2.0 | 4.3 | 8.5 | 15.5 | 22.5 | 32 | 55 | ||
5 | 0.7 | 2.0 | 4.3 | 8.5 | 15.5 | 22.5 | 32 | 55 | ||
6 | 0.7 | 2.0 | 4.3 | 8.5 | 15.5 | 22.5 | 32 | 55 | ||
7 | 0.7 | 2.0 | 4.3 | 8.5 | 15.5 | 22.5 | 32 | 55 | ||
8 | 0.7 | 2.0 | 4.3 | 8.5 | 15.5 | 22.5 | 32 | 55 | ||
10 | 0.7 | 2.0 | 4.3 | 8.5 | 15.5 | 22.5 | 32 | 55 | ||
噪音值(4) | dB | 3 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 |
4 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
5 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
6 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
7 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
8 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
10 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
使用温度范围 | °C | 3 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 |
4 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
5 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
6 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
7 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
8 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
10 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
防护等级 | 3 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | |
4 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
5 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
6 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
7 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
8 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
10 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
润滑油 | 3 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | |
4 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
5 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
6 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
7 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
8 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
10 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
转动惯量 | kg‧cm2 | 3 | - | 0.33 | 1.95 | 5.76 | 12.84 | 21.65 | 44.00 | 69.70 |
4 | - | 0.29 | 1.71 | 4.90 | 10.54 | 17.33 | 35.75 | 54.07 | ||
5 | - | 0.28 | 1.69 | 4.82 | 10.09 | 16.87 | 34.70 | 53.07 | ||
6 | - | 0.28 | 1.66 | 4.80 | 9.95 | 15.72 | 32.27 | 49.60 | ||
7 | - | 0.28 | 1.66 | 4.73 | 9.90 | 15.68 | 32.06 | 49.52 | ||
8 | - | 0.27 | 1.66 | 4.73 | 9.89 | 15.59 | 31.94 | 49.30 | ||
10 | - | 0.27 | 1.66 | 4.72 | 9.87 | 15.58 | 31.83 | 49.12 |
注(2)堪用期内可作1000次之动作。
注(3)输出转速100rpm作用于输出轴中心。
注(4)噪音值测量于5比/输入转速3000rpm/距离1公尺/无负载运转。
连续运转将会减少减速机二分之一的使用寿命。
客户所需之减速比,若非表内所有,可与本公司洽询。
AG 技术资料 (双段) 减速比 12~100
规格 | 减速比 | AG042 | AG060 | AG090 | AG115 | AG142 | AG160 | AG180 | AG220 | |
---|---|---|---|---|---|---|---|---|---|---|
最大加速扭矩 (1) T2B | Nm | 12 | - | 45 | 113 | 222 | 440 | 770 | 1165 | 1960 |
15 | - | 45 | 113 | 222 | 440 | 770 | 1165 | 1960 | ||
20 | 18 | 55 | 130 | 300 | 560 | 880 | 1450 | 2400 | ||
25 | 18 | 55 | 130 | 300 | 560 | 880 | 1450 | 2400 | ||
30 | 15 | 45 | 113 | 222 | 440 | 800 | 1165 | 1960 | ||
35 | 18 | 55 | 130 | 300 | 560 | 880 | 1450 | 2400 | ||
40 | 18 | 55 | 130 | 300 | 560 | 880 | 1450 | 2400 | ||
50 | 18 | 55 | 130 | 300 | 560 | 880 | 1450 | 2400 | ||
60 | 15 | 45 | 115 | 278 | 480 | 800 | 1220 | 2020 | ||
70 | 13 | 40 | 110 | 267 | 425 | 760 | 1085 | 1800 | ||
80 | 10 | 38 | 103 | 240 | 410 | 700 | 1045 | 1740 | ||
100 | 7 | 35 | 90 | 210 | 350 | 520 | 1000 | 1635 | ||
紧急停止扭矩(2) T2Not | Nm | 12 | - | 112.5 | 282.5 | 555 | 1100 | 1925 | 2912.5 | 4900 |
15 | - | 112.5 | 282.5 | 555 | 1100 | 1925 | 2912.5 | 4900 | ||
20 | 45 | 137.5 | 325 | 750 | 1400 | 2200 | 3625 | 6000 | ||
25 | 45 | 137.5 | 325 | 750 | 1400 | 2200 | 3625 | 6000 | ||
30 | 37.5 | 112.5 | 282.5 | 555 | 1100 | 2000 | 2912.5 | 4900 | ||
35 | 45 | 137.5 | 325 | 750 | 1400 | 2200 | 3625 | 6000 | ||
40 | 45 | 137.5 | 325 | 750 | 1400 | 2200 | 3625 | 6000 | ||
50 | 45 | 137.5 | 325 | 750 | 1400 | 2200 | 3625 | 6000 | ||
60 | 37.5 | 112.5 | 287.5 | 695 | 1200 | 2000 | 3050 | 5050 | ||
70 | 32.5 | 100 | 275 | 667.5 | 1062.5 | 1900 | 2712.5 | 4500 | ||
80 | 25 | 95 | 257.5 | 600 | 1025 | 1750 | 2612.5 | 4350 | ||
100 | 17.5 | 87.5 | 225 | 525 | 875 | 1300 | 2500 | 4087.5 | ||
额定输入转速 n1N | rpm | 12 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 |
15 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
20 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
25 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
30 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
35 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
40 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
50 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
60 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
70 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
80 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
100 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | 1500 | 1500 | ||
最大输入转速 n1Max | rpm | 12 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 |
15 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
20 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
25 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
30 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
35 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
40 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
50 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
60 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
70 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
80 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
100 | 10000 | 8000 | 6000 | 6000 | 4000 | 3500 | 3000 | 3000 | ||
径向负荷力(3) Frmax | N | 12 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 |
15 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
20 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
25 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
30 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
35 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
40 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
50 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
60 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
70 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
80 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
100 | 560 | 1000 | 3200 | 5800 | 7000 | 9400 | 12000 | 20000 | ||
轴向负荷力3) Famax | N | 12 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 |
15 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
20 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
25 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
30 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
35 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
40 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
50 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
60 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
70 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
80 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
100 | 280 | 500 | 1600 | 2900 | 3500 | 4700 | 6000 | 10000 | ||
超精密背隙 | arcmin | 12 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
15 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
20 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
25 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
30 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
35 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
40 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
50 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
60 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
70 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
80 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
100 | - | - | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
精密背隙 | arcmin | 12 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
15 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
20 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
25 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
30 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
35 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
40 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
50 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
60 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
70 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
80 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
100 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
标准背隙 | arcmin | 12 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 |
15 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
20 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
25 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
30 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
35 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
40 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
50 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
60 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
70 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
80 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
100 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
扭转刚性 | Nm/arcmin | 12 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 |
15 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
20 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
25 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
30 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
35 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
40 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
50 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
60 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
70 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
80 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
100 | 2 | 5 | 10 | 24 | 50 | 95 | 150 | 220 | ||
满载时使用效率 | % | 12 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 |
15 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
20 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
25 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
30 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
35 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
40 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
50 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
60 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
70 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
80 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
100 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ||
使用寿命 LH2 | h | 12 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 |
15 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
20 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
25 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
30 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
35 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
40 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
50 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
60 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
70 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
80 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
100 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | ||
重量 | kg | 12 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 |
15 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
20 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
25 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
30 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
35 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
40 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
50 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
60 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
70 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
80 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
100 | 1.7 | 2.7 | 5.0 | 10.0 | 19.5 | 24.5 | 34.5 | 58.5 | ||
噪音值(4) | dB | 12 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 |
15 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
20 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
25 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
30 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
35 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
40 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
50 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
60 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
70 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
80 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
100 | ≤56 | ≤58 | ≤60 | ≤63 | ≤65 | ≤65 | ≤66 | ≤68 | ||
使用温度范围 | °C | 12 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 |
15 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
20 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
25 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
30 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
35 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
40 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
50 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
60 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
70 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
80 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
100 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | -10~+90 | ||
防护等级 | 12 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | |
15 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
20 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
25 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
30 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
35 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
40 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
50 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
60 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
70 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
80 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
100 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | IP64 | ||
润滑油 | 12 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | |
15 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
20 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
25 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
30 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
35 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
40 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
50 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
60 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
70 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
80 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
100 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ISO VG220 | ||
转动惯量 | kg‧cm2 | 12 | - | 0.28 | 1.71 | 4.38 | 10.34 | 10.34 | 13.15 | 44.00 |
15 | - | 0.28 | 1.71 | 4.38 | 10.34 | 10.34 | 13.15 | 44.00 | ||
20 | - | 0.27 | 1.49 | 4.01 | 8.53 | 8.53 | 9.32 | 35.75 | ||
25 | - | 0.27 | 1.47 | 3.97 | 8.38 | 8.38 | 8.85 | 34.70 | ||
30 | - | 0.27 | 1.47 | 3.97 | 8.38 | 8.38 | 8.85 | 34.70 | ||
35 | - | 0.26 | 1.46 | 3.88 | 8.32 | 8.32 | 8.43 | 32.06 | ||
40 | - | 0.26 | 1.46 | 4.00 | 8.26 | 8.26 | 8.37 | 31.83 | ||
50 | - | 0.26 | 1.46 | 4.00 | 8.26 | 8.26 | 8.37 | 31.83 | ||
60 | - | 0.26 | 1.46 | 4.00 | 8.26 | 8.26 | 8.37 | 31.83 | ||
70 | - | 0.26 | 1.46 | 4.00 | 8.26 | 8.26 | 8.37 | 31.83 | ||
80 | - | 0.26 | 1.46 | 4.00 | 8.26 | 8.26 | 8.37 | 31.83 | ||
100 | - | 0.26 | 1.46 | 4.00 | 8.26 | 8.26 | 8.37 | 31.83 |
注(2)堪用期内可作1000次之动作。
注(3)输出转速100rpm作用于输出轴中心。
注(4)噪音值测量于5比/输入转速3000rpm/距离1公尺/无负载运转。
连续运转将会减少减速机二分之一的使用寿命。
客户所需之减速比,若非表内所有,可与本公司洽询。
AG外观尺寸 (单段 3 / 4 / 5 / 6 / 7 / 8 / 10 比)[mm]

规格 | AG042 | AG060 | AG090 | AG115 | AG142 | AG160 | AG180 | AG220 |
---|---|---|---|---|---|---|---|---|
D1 | 50 | 70 | 100 | 130 | 165 | 190 | 215 | 250 |
D2 | 3.4 | 5.5 | 6.6 | 9 | 11 | 13 | 13 | 17 |
D3(j6) | 13 | 16 | 22 | 32 | 40 | 50 | 55 | 75 |
D4(g6) | 35 | 50 | 80 | 110 | 130 | 145 | 160 | 180 |
D5 | 15 | 20 | 35 | 40 | 50 | 60 | 65 | 85 |
D6 | M4*0.7P | M8*0.8P | M8*1.25P | M12*1.75P | M16*2P | M16*2P | M20*2.5P | M20*2.5P |
D7 | 56 | 80 | 116 | 152 | 185 | 215 | 240 | 292 |
L1 | 42 | 60 | 90 | 115 | 142 | 160 | 180 | 220 |
L2 | 26 | 37 | 48 | 65 | 97 | 97 | 105 | 138 |
L3 | 5.5 | 7 | 10 | 12 | 15 | 15 | 20 | 30 |
L4 | 1 | 1.5 | 1.5 | 2 | 3 | 3 | 3 | 3 |
L5 | 16 | 25 | 32 | 40 | 63 | 70 | 70 | 90 |
L6 | 2 | 2 | 3 | 5 | 5 | 5 | 6 | 7 |
L7 | 4 | 6 | 8 | 10 | 12 | 13.5 | 15 | 20 |
L8 | 34.5 | 44.5 | 52.5 | 70.5 | 78 | 90 | 93 | 108 |
L9 | 3 | 4 | 4 | 6 | 14 | 10 | 12 | 12 |
L10 | 10 | 12.5 | 19 | 24 | 36 | 36 | 42 | 42 |
C1(1) | 46 | 70 | 90 | 145 | 165 | 200 | 215 | 215 |
C2(1) | M4*0.7P | M5*0.8P | M6*1P | M8*1.25P | M10*1.5P | M12*1.75P | M12*1.75P | M12*1.75P |
C3(1) | ≦ 11 | ≦ 14 | ≦ 24 | ≦ 32 | ≦ 38 | ≦ 42 | ≦ 48 | ≦ 55 |
C4(1) | 28.5 | 31.5 | 44 | 58 | 66.5 | 82 | 82 | 81 |
C5(G6)(1) | 30 | 50 | 70 | 110 | 130 | 114.3 | 180 | 114.3 |
C6(1) | 4 | 5 | 10 | 16 | 10 | 20 | 15 | 15 |
C7(1) | 57 | 67 | 101.6 | 129 | 152.4 | 178 | 203 | 242 |
C8(1) | 31.5 | 35.5 | 55 | 67 | 75 | 88 | 87.5 | 83 |
C9(1) | 92 | 117 | 155.5 | 202.5 | 250 | 275 | 285.5 | 329 |
C10(1) | 12 | 20 | 25 | 34 | 35 | 45 | 43 | 42 |
B1(h9) | 5 | 5 | 6 | 10 | 12 | 14 | 16 | 20 |
H1 | 15 | 18 | 24.5 | 35 | 43 | 53.5 | 59 | 79.5 |
※此记号表示之尺寸视联结之伺服马达不同而有所变动。
本公司的产品不断的研究、发展。上表所示之尺寸力求精准,若有不符,仍以实物为准,如需确实之尺寸,可洽本公司。
AG外观尺寸 (双段 12~100 比)[mm]

规格 | AG042 | AG060 | AG090 | AG115 | AG142 | AG160 | AG180 | AG220 |
---|---|---|---|---|---|---|---|---|
D1 | 50 | 70 | 100 | 130 | 165 | 190 | 215 | 250 |
D2 | 3.4 | 5.5 | 6.6 | 9 | 11 | 13 | 13 | 17 |
D3(j6) | 13 | 16 | 22 | 32 | 40 | 50 | 55 | 75 |
D4(g6) | 35 | 50 | 80 | 110 | 130 | 145 | 160 | 180 |
D5 | 15 | 20 | 35 | 40 | 50 | 60 | 65 | 85 |
D6 | M4*0.7P | M8*0.8P | M8*1.25P | M12*1.75P | M16*2P | M16*2P | M20*2.5P | M20*2.5P |
D7 | 56 | 80 | 116 | 152 | 185 | 215 | 240 | 292 |
L1 | 42 | 60 | 90 | 115 | 142 | 160 | 180 | 220 |
L2 | 26 | 37 | 48 | 65 | 97 | 97 | 105 | 138 |
L3 | 5.5 | 7 | 10 | 12 | 15 | 15 | 20 | 30 |
L4 | 1 | 1.5 | 1.5 | 2 | 3 | 3 | 3 | 3 |
L5 | 16 | 25 | 32 | 40 | 63 | 70 | 70 | 90 |
L6 | 2 | 2 | 3 | 5 | 5 | 5 | 6 | 7 |
L7 | 4 | 6 | 8 | 10 | 12 | 13.5 | 15 | 20 |
L8 | 57 | 67.5 | 84.5 | 111.5 | 125.5 | 138 | 156 | 178 |
L9 | 3 | 4 | 4 | 6 | 14 | 10 | 12 | 12 |
L10 | 10 | 12.5 | 19 | 28 | 36 | 36 | 42 | 42 |
C1(1) | 46 | 70 | 90 | 145 | 145 | 200 | 145 | 200 |
C2(1) | M4*0.7P | M5*0.8P | M6*1P | M8*1.25P | M8*1.25P | M12*1.75P | M8*1.25P | M12*1.75P |
C3(1) | ≦ 11 | ≦ 14 | ≦ 24 | ≦ 32 | ≦ 38 | ≦ 38 | ≦ 38 | ≦ 48 |
C4(1) | 28.5 | 31.5 | 44 | 58 | 66.5 | 67.5 | 81 | 116 |
C5(G6)(1) | 30 | 50 | 70 | 110 | 130 | 114.3 | 114.3 | 114.3 |
C6(1) | 4 | 5 | 10 | 16 | 10 | 20 | 25 | 30 |
C7(1) | 57 | 67 | 101.6 | 129 | 152.4 | 178 | 178 | 203 |
C8(1) | 31.5 | 35.5 | 55 | 67 | 75 | 90 | 96 | 137.5 |
C9(1) | 114.5 | 140 | 187.5 | 243.5 | 297.5 | 325 | 351 | 446 |
C10(1) | 12 | 20 | 25 | 34 | 35 | 50 | 58 | 78 |
B1(h9) | 5 | 5 | 6 | 10 | 12 | 14 | 16 | 20 |
H1 | 15 | 18 | 24.5 | 35 | 43 | 53.5 | 59 | 79.5 |
※此记号表示之尺寸视联结之伺服马达不同而有所变动。
本公司的产品不断的研究、发展。上表所示之尺寸力求精准,若有不符,仍以实物为准,如需确实之尺寸,可洽本公司。
工具机业
- CNC 龙门铣床 / CNC 龙门磨床
- CNC 综合加工机 / CNC深孔加工机
- CNC 落地搪床 / CNC钻孔机
- CNC 龙门刨床 / CNC 冲床
- CNC 重型卧车‧立车
产业机械
- 包装机械 / 印刷机 / 攻牙机
- 纺织机械 / 弯管机 / CNC冲压机
- 木工机 / 吹瓶机 / 雕刻机
- 充填机 / 射出成型机 / CNC弹簧机
- 雷射切割机 / 雷射焊接机
工厂自动化工业
- 半导体机械设备 / 光电面板业
- 机械手臂 / 自动仓储运搬系统
- 医疗产业 / 金属表面处理设备

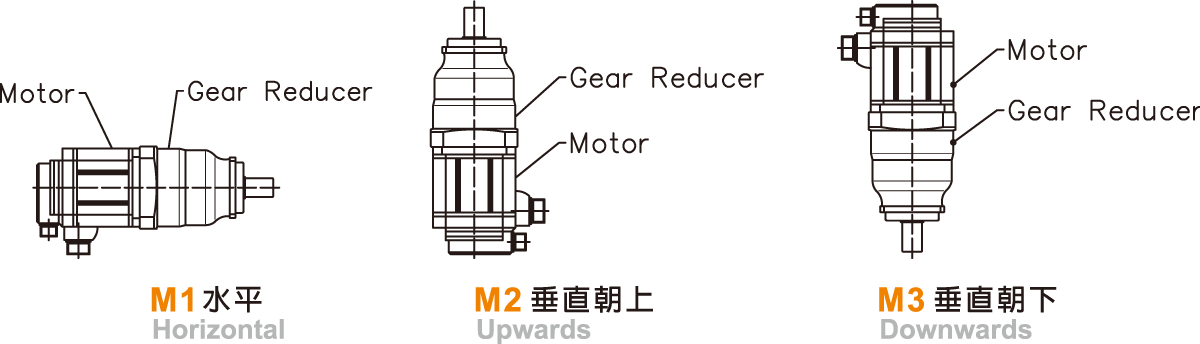

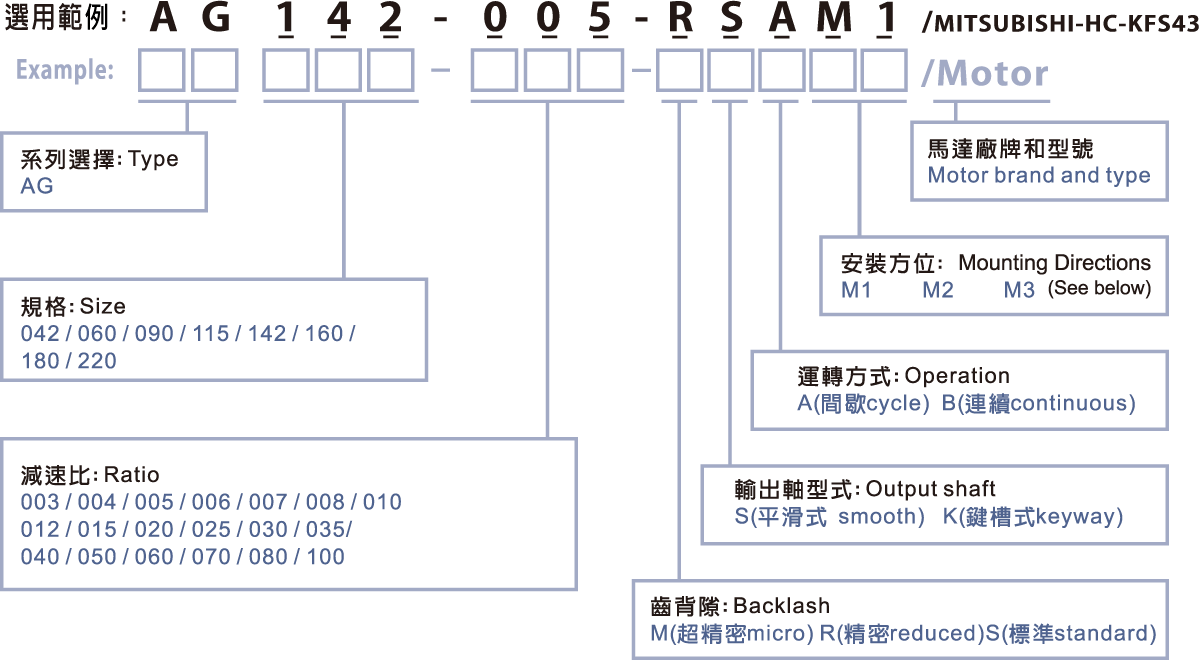

安装方位
